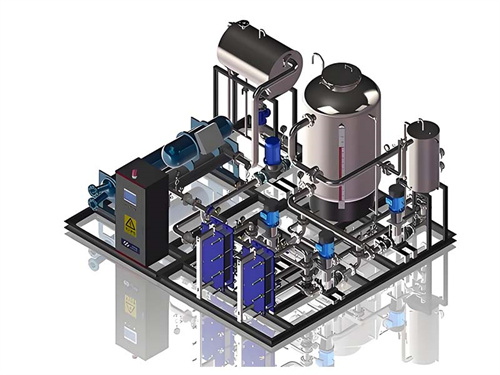

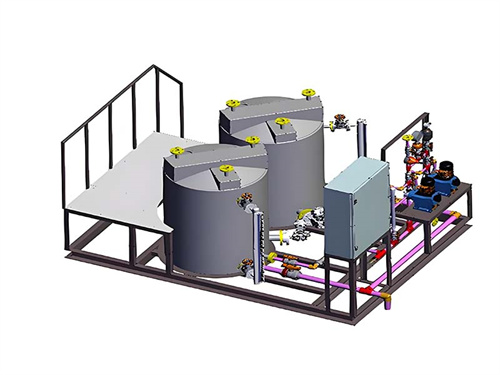

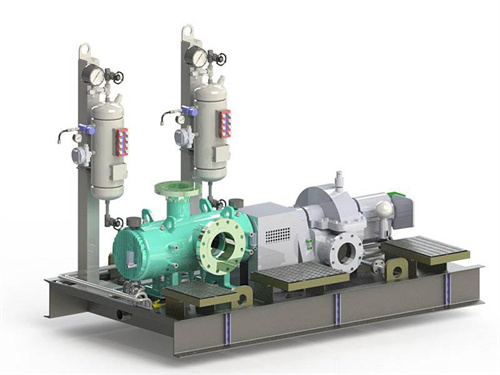

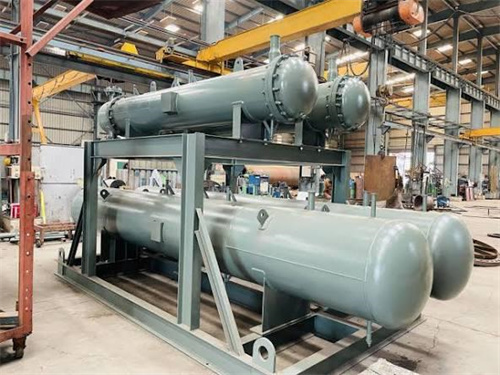

Skid-mounted equipment

Skid mounted equipment can be classified based on its purpose and characteristics.

The following are some common classifications:

1. According to functional classification: such as pre-treatment skid mounted equipment, reverse osmosis skid mounted equipment, ultrafiltration skid mounted equipment, softened water skid mounted equipment, pure water skid mounted equipment, ultra pure water skid mounted equipment, etc.

2. According to process classification: such as physical treatment skid mounted equipment, chemical treatment skid mounted equipment, biological treatment skid mounted equipment, etc.

3. Classified by application field: such as petrochemical skidding equipment, food and beverage skidding equipment, pharmaceutical skidding equipment, power skidding equipment, etc.

4. Classify according to equipment type: such as single unit skid mounted equipment, combination skid mounted equipment, mobile skid mounted equipment, etc.

5. Classification based on structural type: such as vertical pry mounted equipment, horizontal pry mounted equipment, combined pry mounted equipment, etc.

6. Classification based on operation mode: such as manual prying equipment, semi-automatic prying equipment, fully automatic prying equipment, etc.

SCOPE OF WORK

Mechanical and Fabrication guarantee

Design including strength calculation (including erection condition) stress analysis and detail design based on applicable Codes, Local Regulation, Project Specifications and Standards

Thermal Design (Thermal Rating)

All technical certifications required for design work as per local regulations

Stability check (during transport, lifting and hydrostatic test) and loading data for base design

Structural analysis for main body and its support for operation load

Material procurement

Material Test and Certificates as per applicable Code and Specifications

Manufacturing

Post weld heat treatment as per code and specification

PMI (Positive Material Identification)

All NDEs as per Project Specification

Welding procedure qualification test

WPS & PQR

Welder performance test

Hydrostatic test at BlDDER shop as per Code & Local Regulations, Specifications.

Installation work for vessel internals supplied by Bidder

External surface preparation and painting as per Specification

Packing and marking as per project specifications

Preservation during transportation and storage (Including Seaworthy packing for oversea manufacturer)

Internal protection from moisture: N2 Charge

All activities to meet requirements of Data Sheets, Specifications, Codes and Standards, Local Regulations
