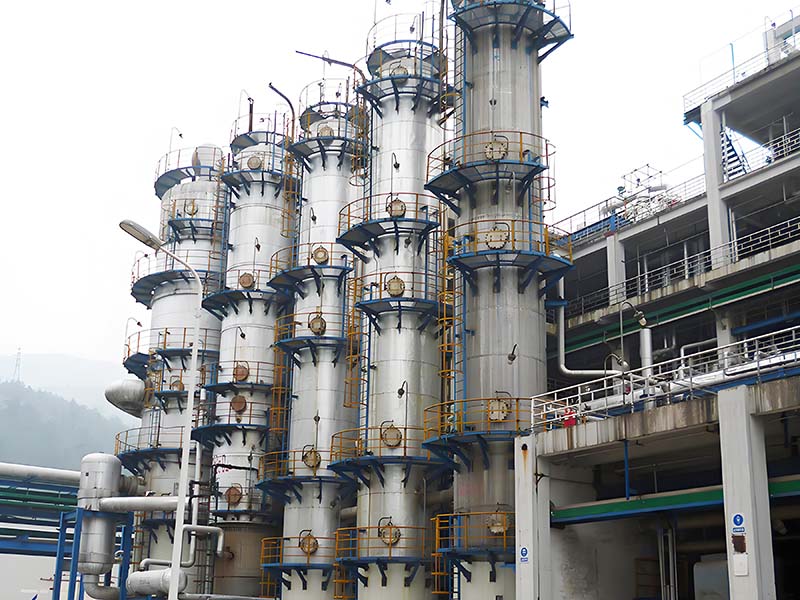

Packed Tower

Description:

A packed tower is a common tower type equipment in chemical equipment, mainly used for mass and heat transfer operations between liquids and gases. According to different uses, packed towers can be divided into the following categories:

1. Absorption tower: used for gas absorption of solutes in liquids, common applications include gas absorption of harmful gases in liquids, dust removal, and desulfurization.

2. Extraction tower: used in liquid-liquid extraction process to transfer solutes from one solution to another. Common applications include extracting organic compounds, separating mixtures, etc.

3. Distillation tower: used for the distillation process of liquid mixtures, separating the mixture into pure components based on the differences in boiling points of different components. Common applications include separation operations in petroleum refining and chemical production.

4. Gas separation tower: used to separate different components in gas mixtures, common applications include air separation in air separation equipment, methane purification in natural gas, etc.

Main Components

Column shell: The vertical vessel body

Packing ma: Random

Liquid distributor: Ensures uniform liquid distribution over the pack

Gas inlet/outlet – Gas typically flows upwards

Liquid inlet/o: Liquid flows downward by gravity

Advantages

Low pressure drop

High mass transfer efficiency

Suitable for heat-sensitive materials

Simple mechanical structure with no moving parts

Disadvantages

Sensitive to poor liquid distribution

Difficult to clean and maintain

Not suitable for highly fouling or dirty systems

Applications

Gas absorption (e.g., CO₂ or SO₂ removal)

Distillation processes in petrochemical and refinery industries

Air pollution control systems

Chemical and pharmaceutical separation processes
